D2ADU

Mar 2023 to Jun 2023

The Dynamic Detached Accessory Dwelling Unit fundamentally transforms the traditional notion of a static, unchanging home.

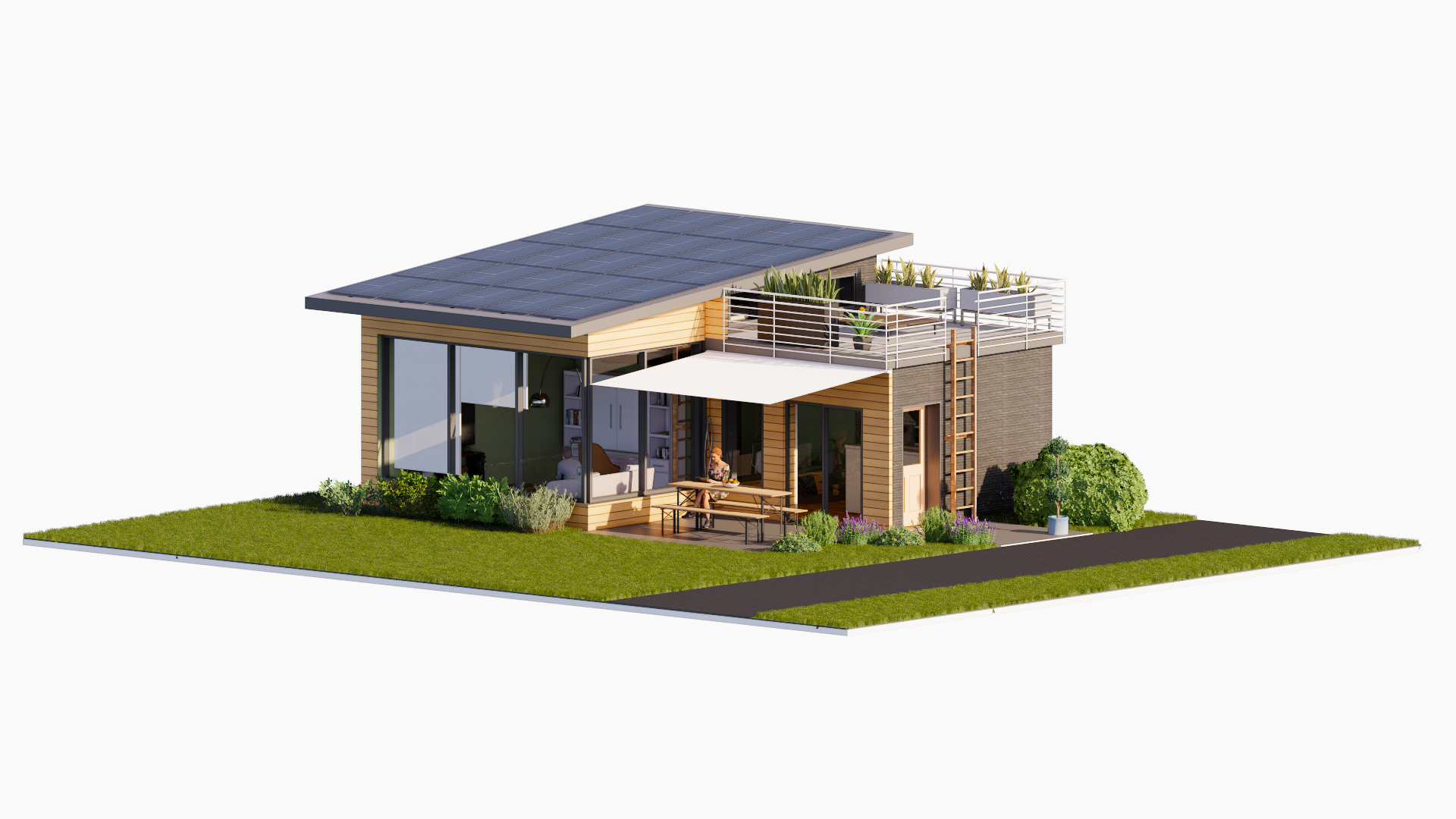

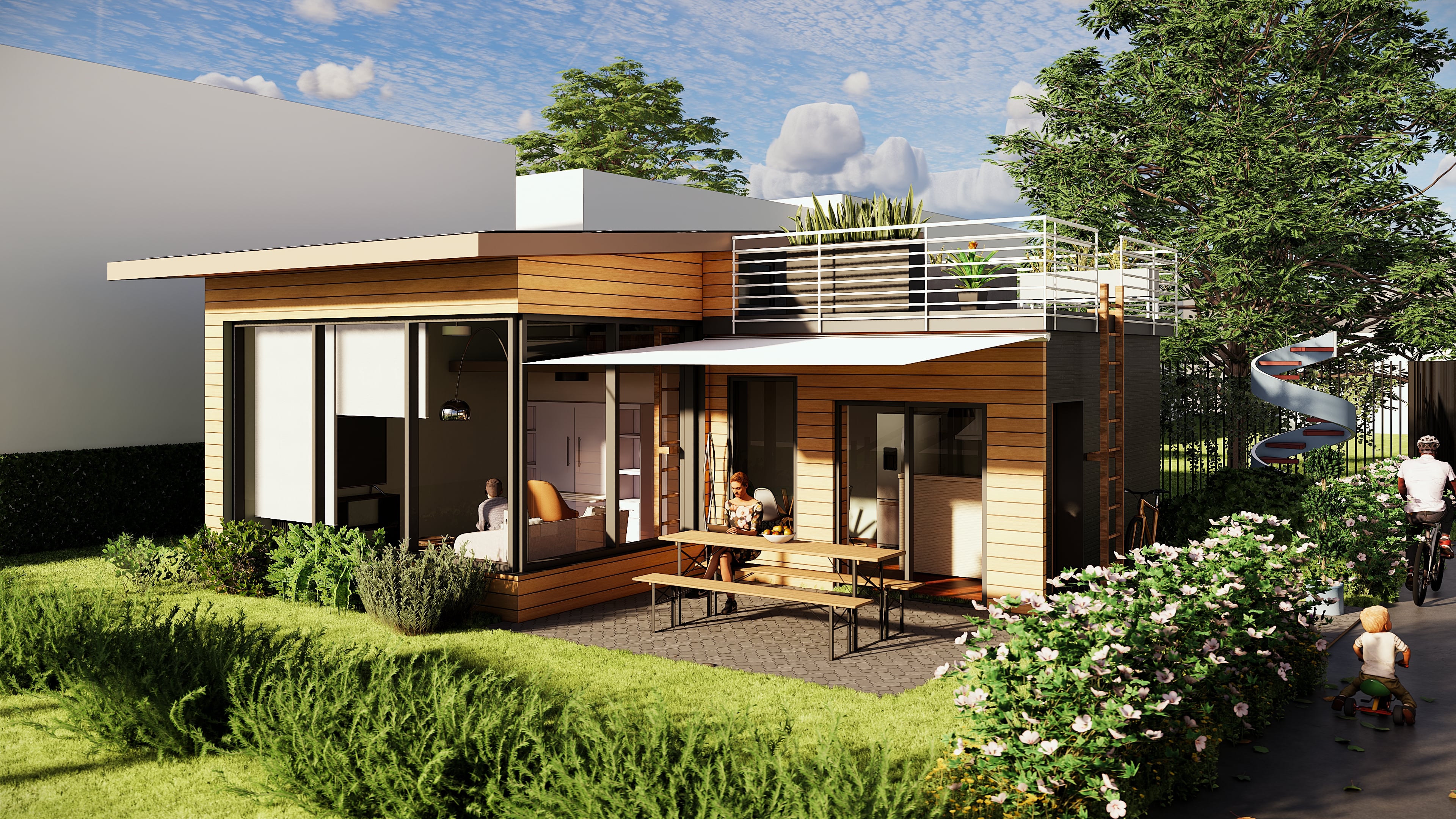

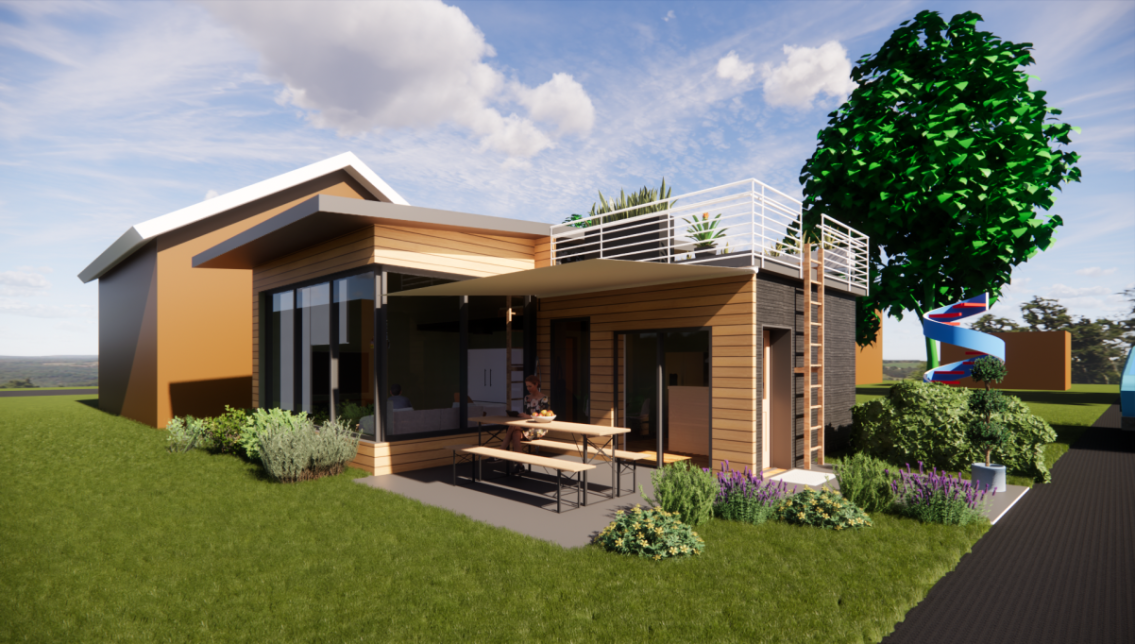

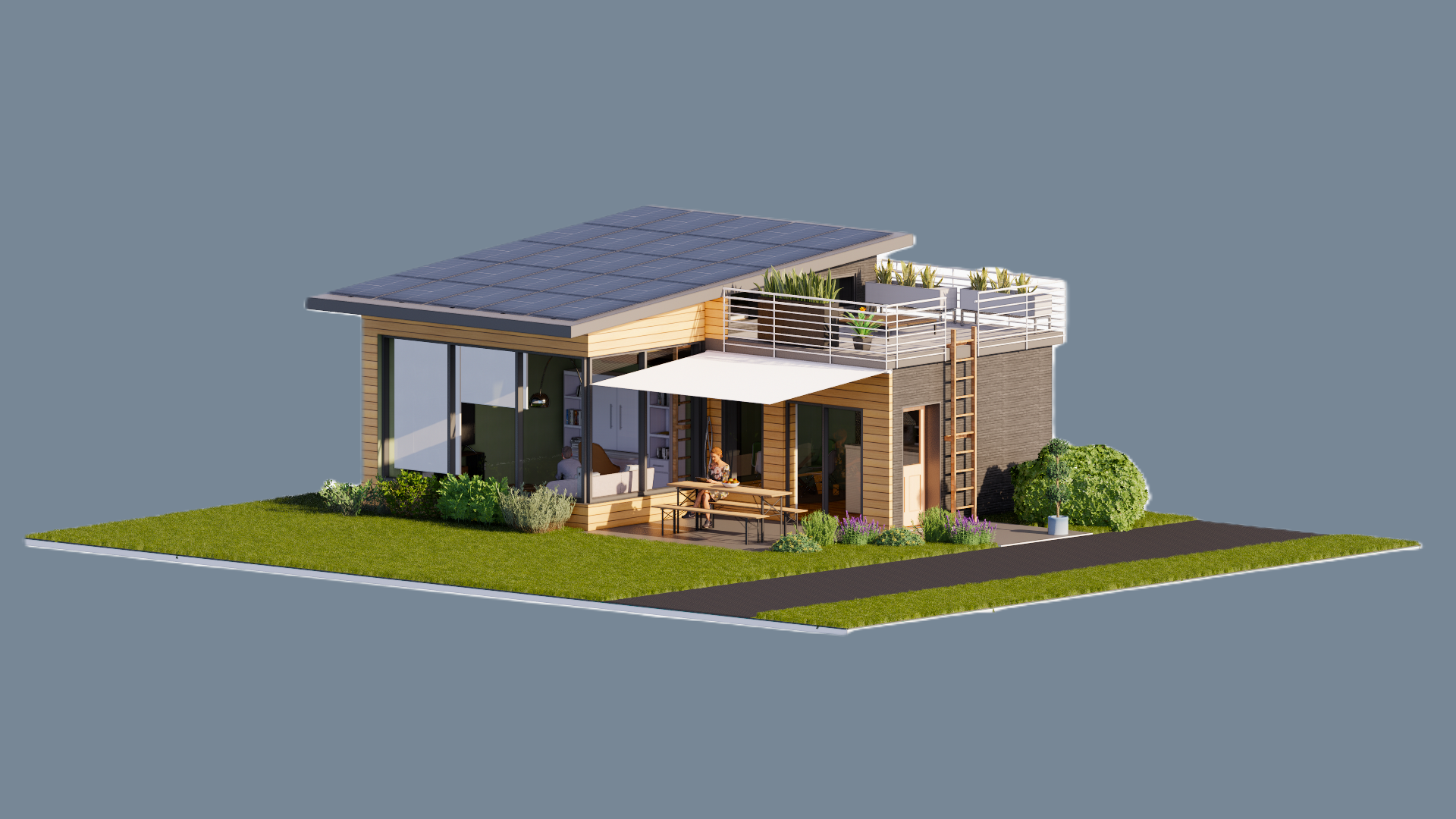

Introducing D2ADU - the Dynamic Detached Accessory Dwelling Unit, a project in St. Louis, MO designed to be a dynamic, climate-responsive residence. The design acknowledges the play between a modern lifestyle and innate biophilic needs by embracing core principles for a sustainable future. This ADU adapts to the design team's mission through interconnected, multifaceted, sustainable solutions that prioritize occupant wellbeing and experience.

Criteria For Design

Climate responsive analysis for solar, daylight, temperature, heating, cooling, and lighting.
Achieve human comfort through climate-adapted design strategies.
Design for one to two residents with adaptable living scenarios.
Maintain sustainable performance while preserving multi-purpose functionality.
650 SF footprint maximum.

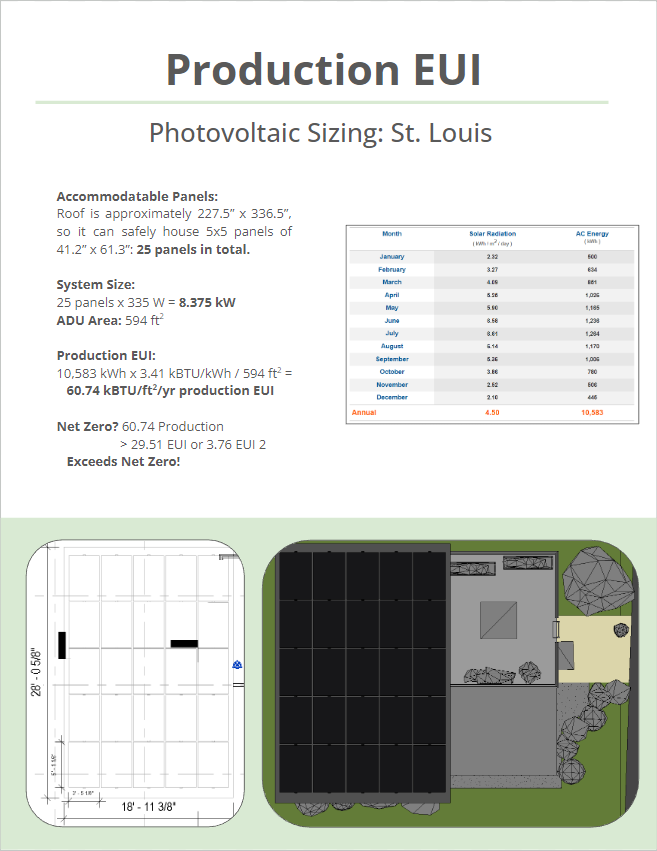

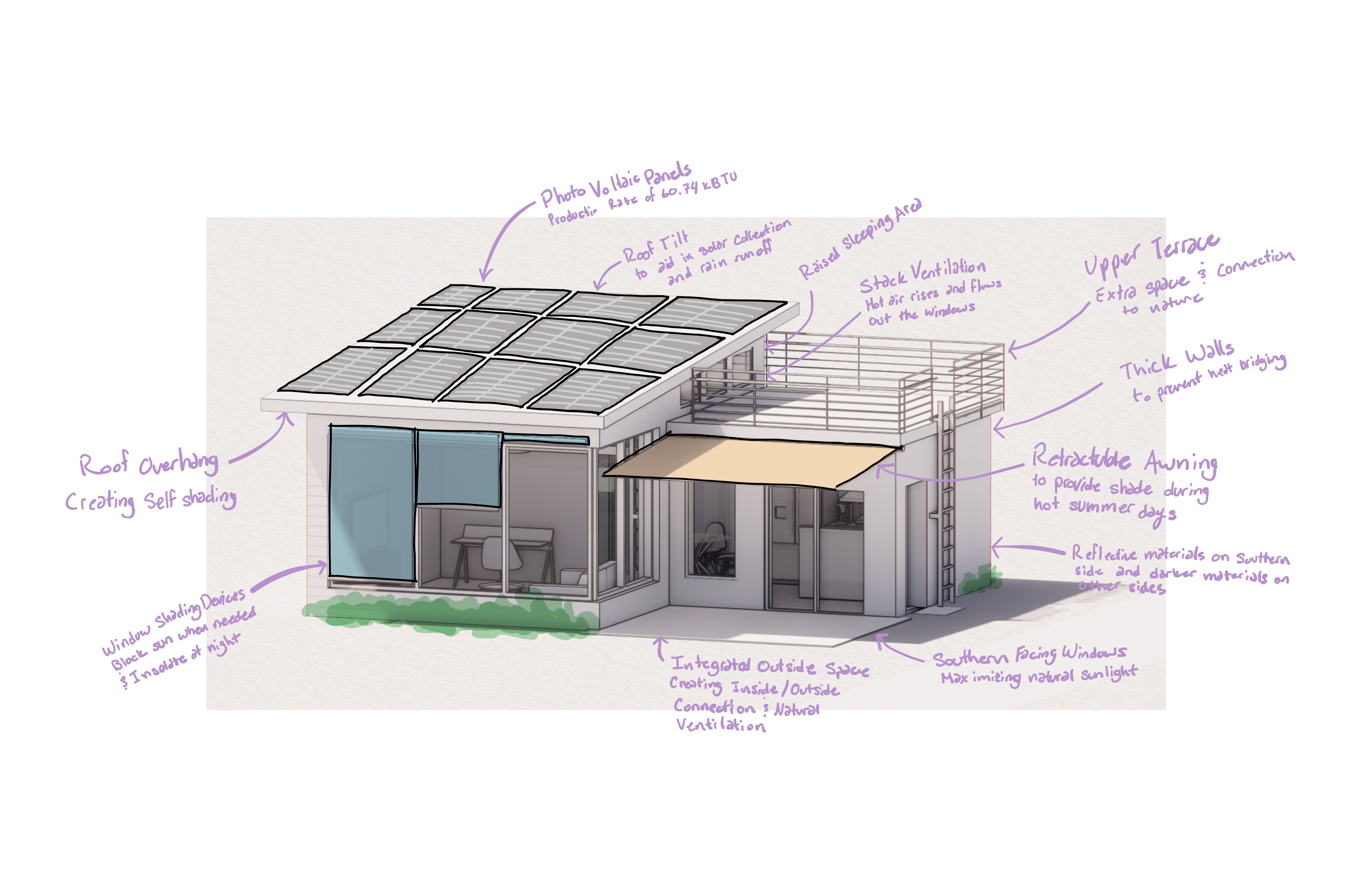

Target net-zero energy use through passive and sustainable design strategies.

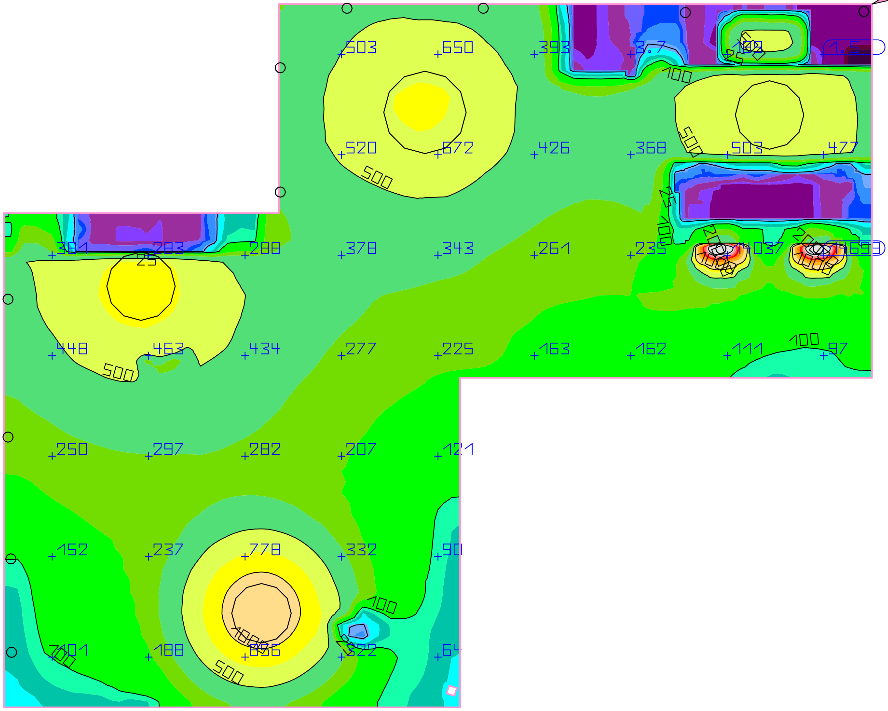

Provide sufficient, energy-efficient lighting and align with IES targets.
Create a dynamic, switch-rich building that adapts to the specific site.

Credits

Designed with Rachel Goss.
Primary studio: ARCH 431 (Prof. Rob Pena).

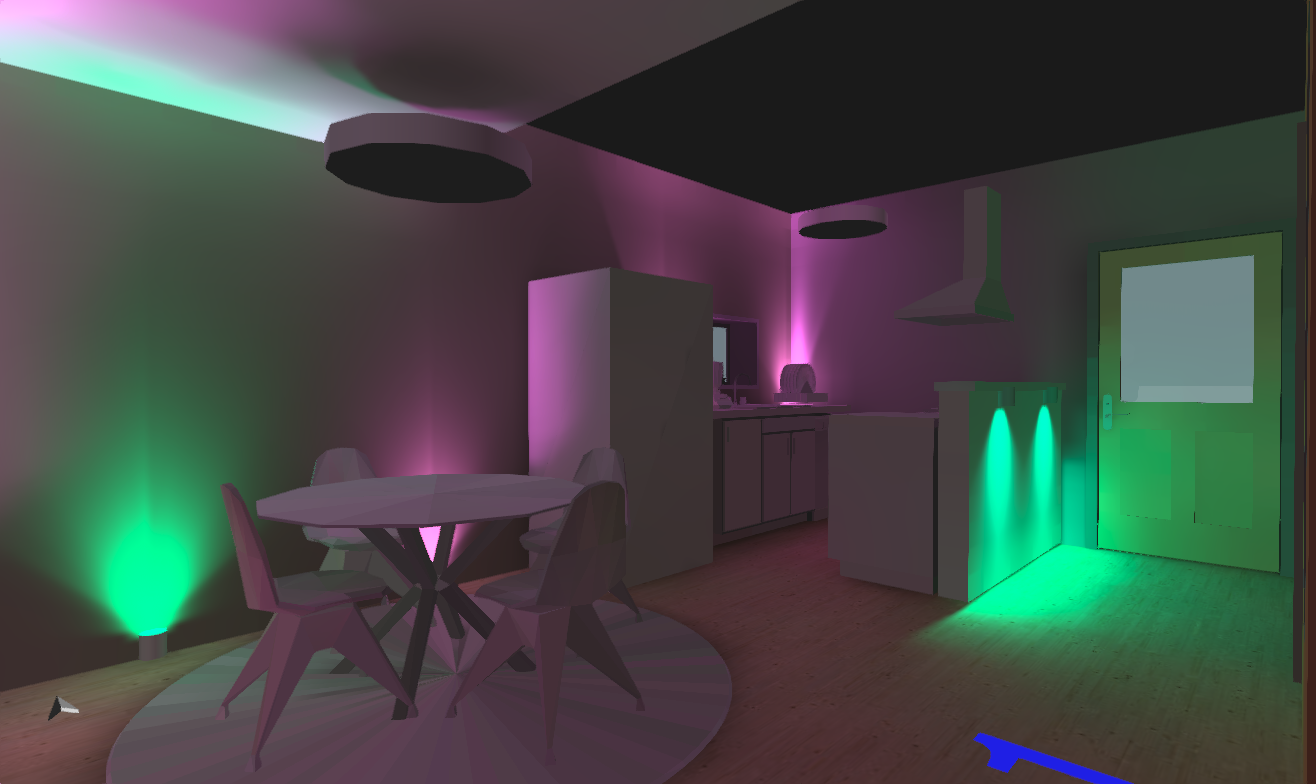

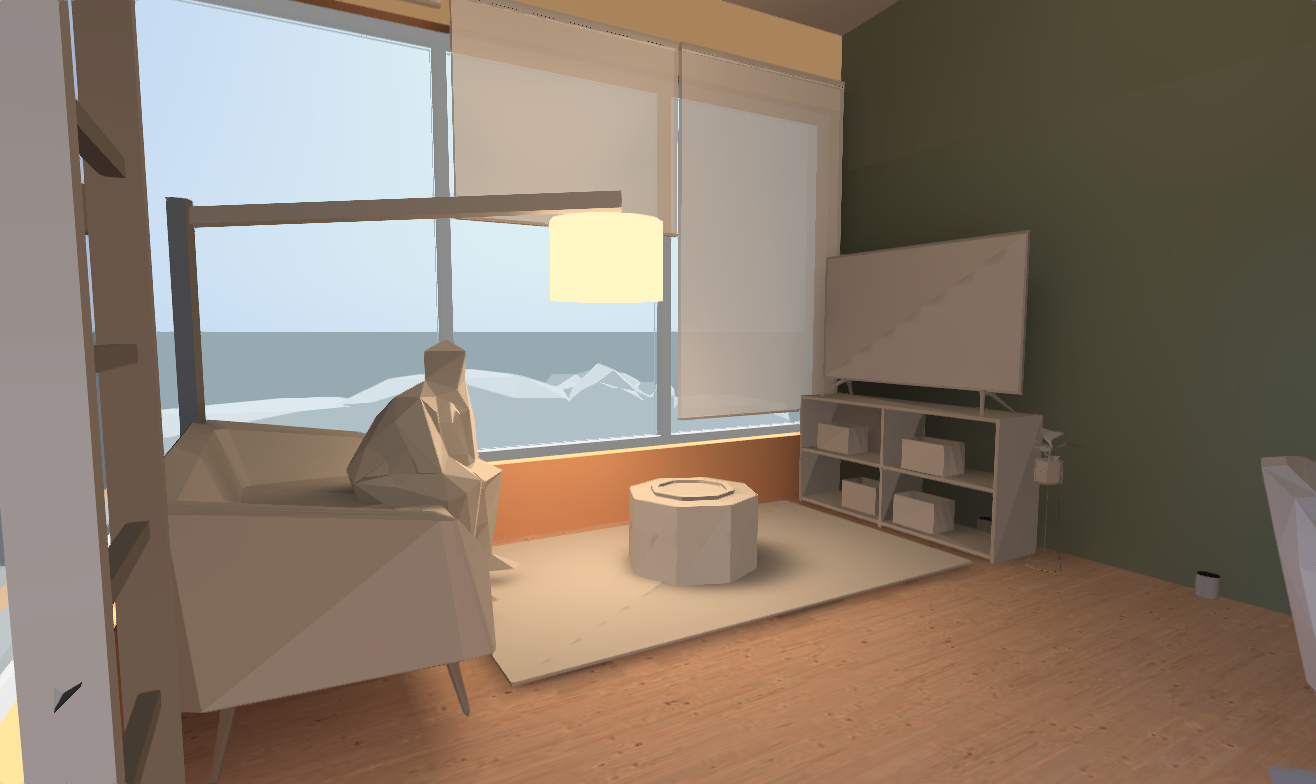

Lighting studies: ARCH 439 (Shaun Darragh, Christopher Meek).

Software

Revit, Enscape, Dialux.

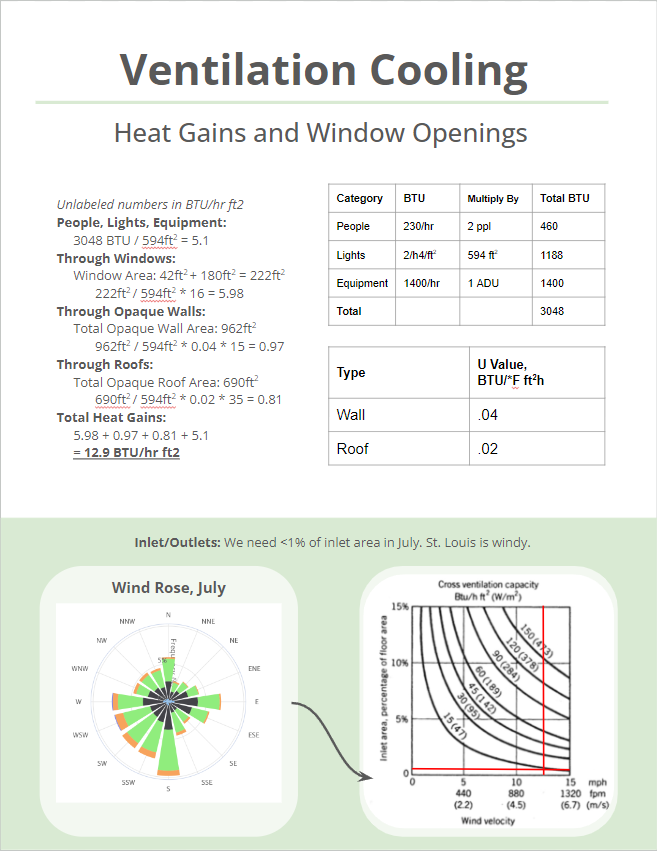

Sustainability calculations in Excel and Revit workflows.

Additional Information

Location: St. Louis, MO.
Approximate size: 600 SF interior, 450 SF slab.
Developed Spring 2023 through Autumn 2024.

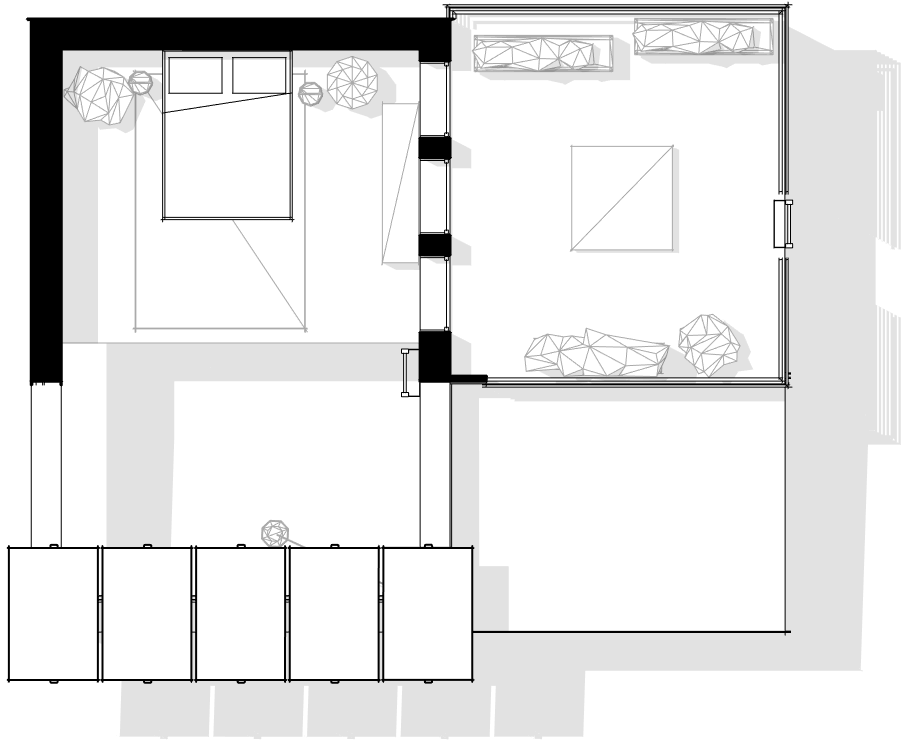

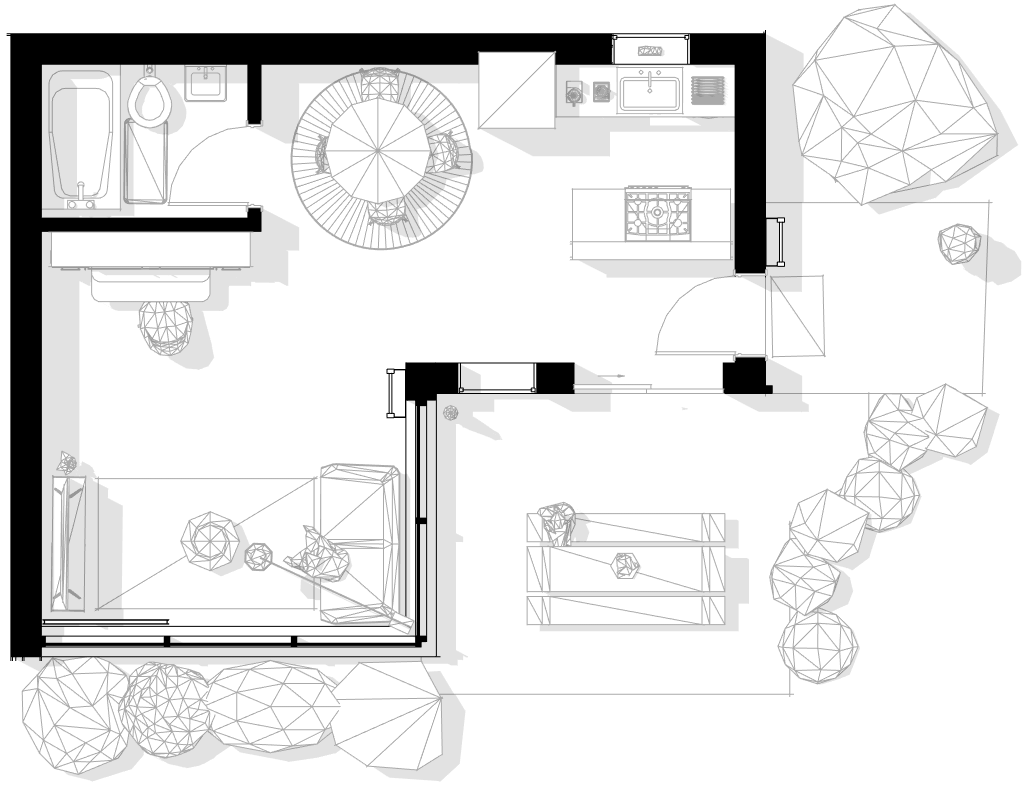

Packages included living, working, dining, cooking, lighting and sustainability calculations, and rendering studies across Level 1 and Level 2.
